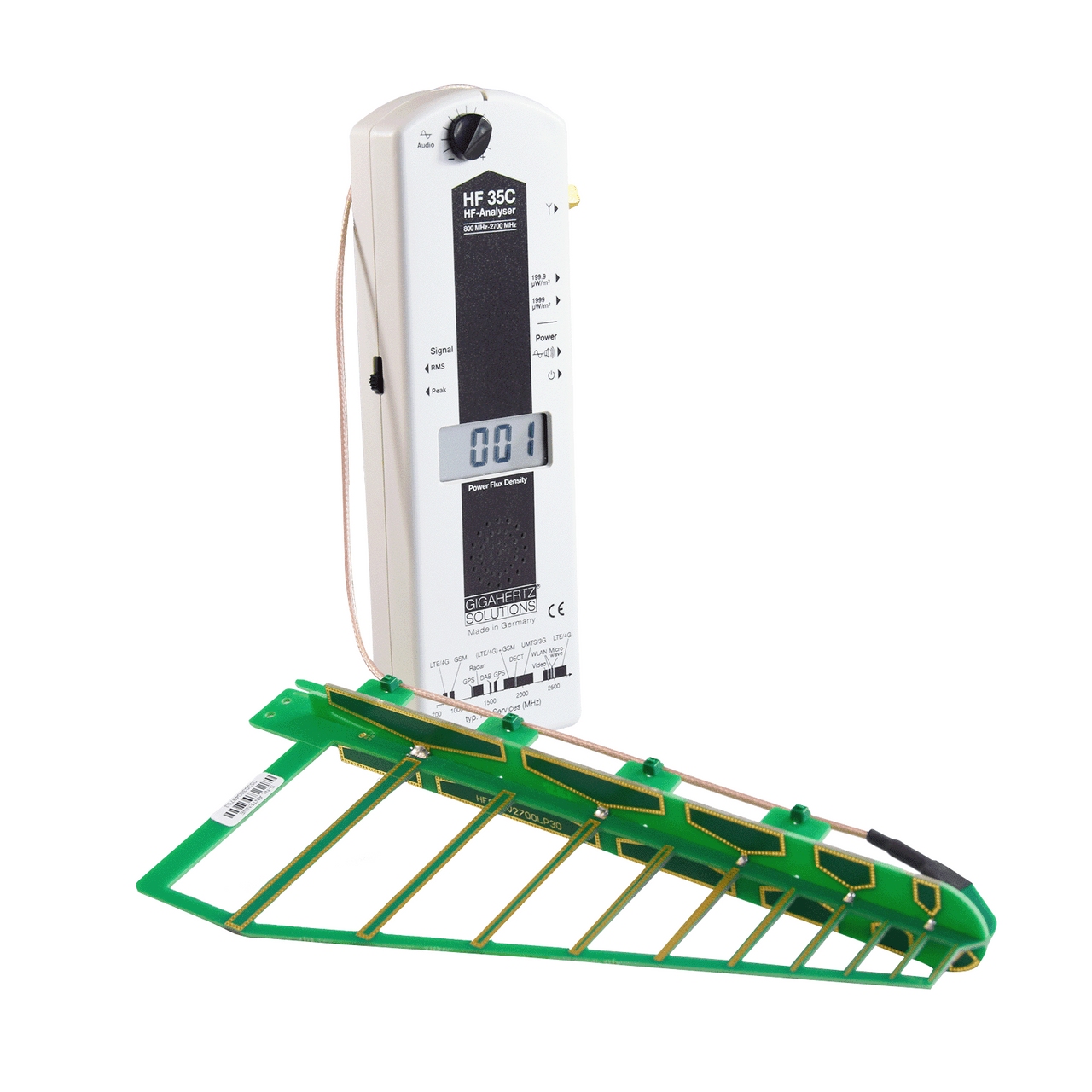

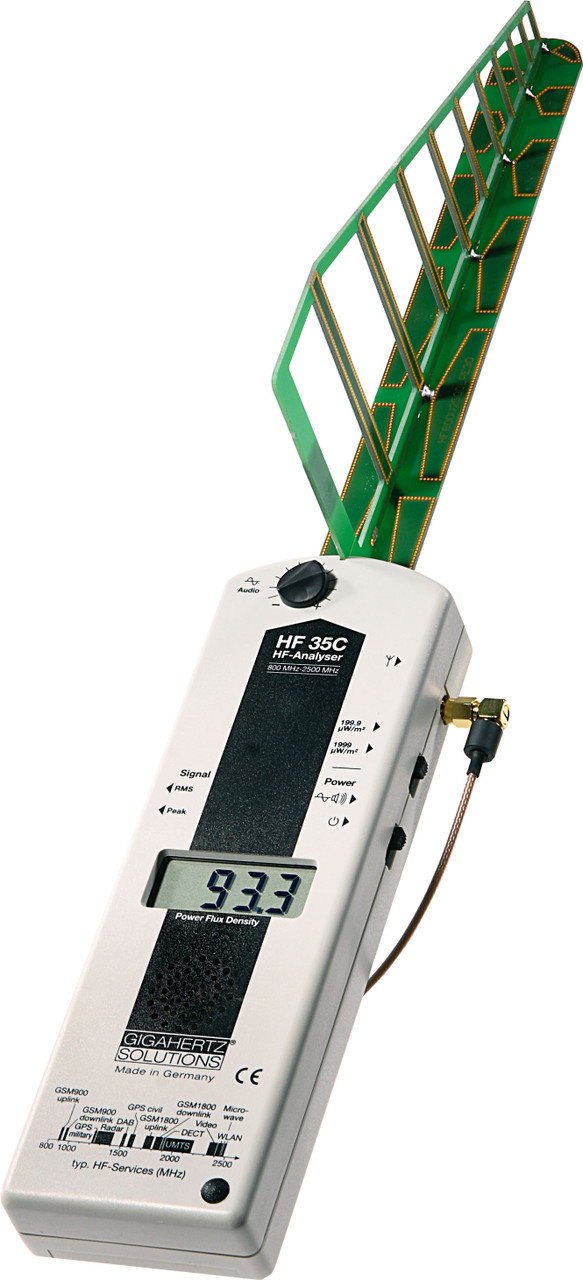

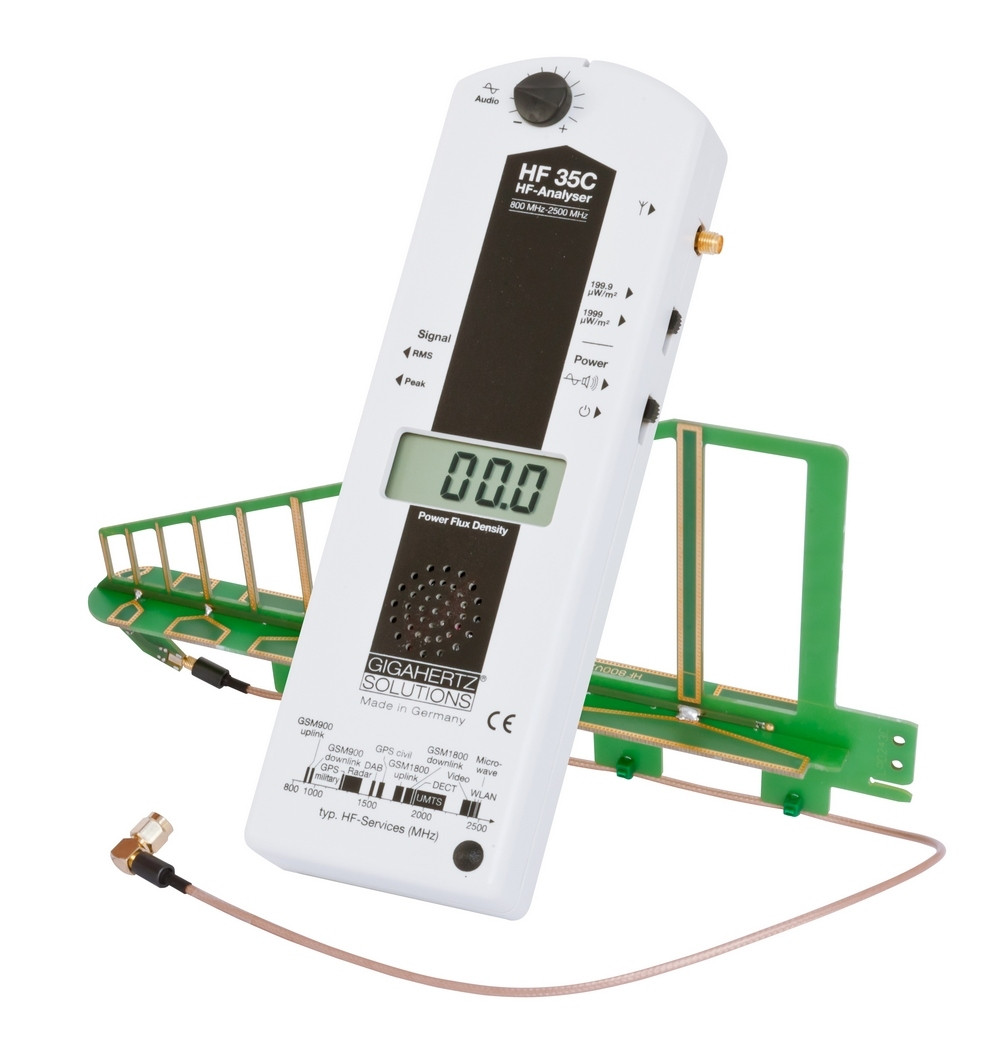

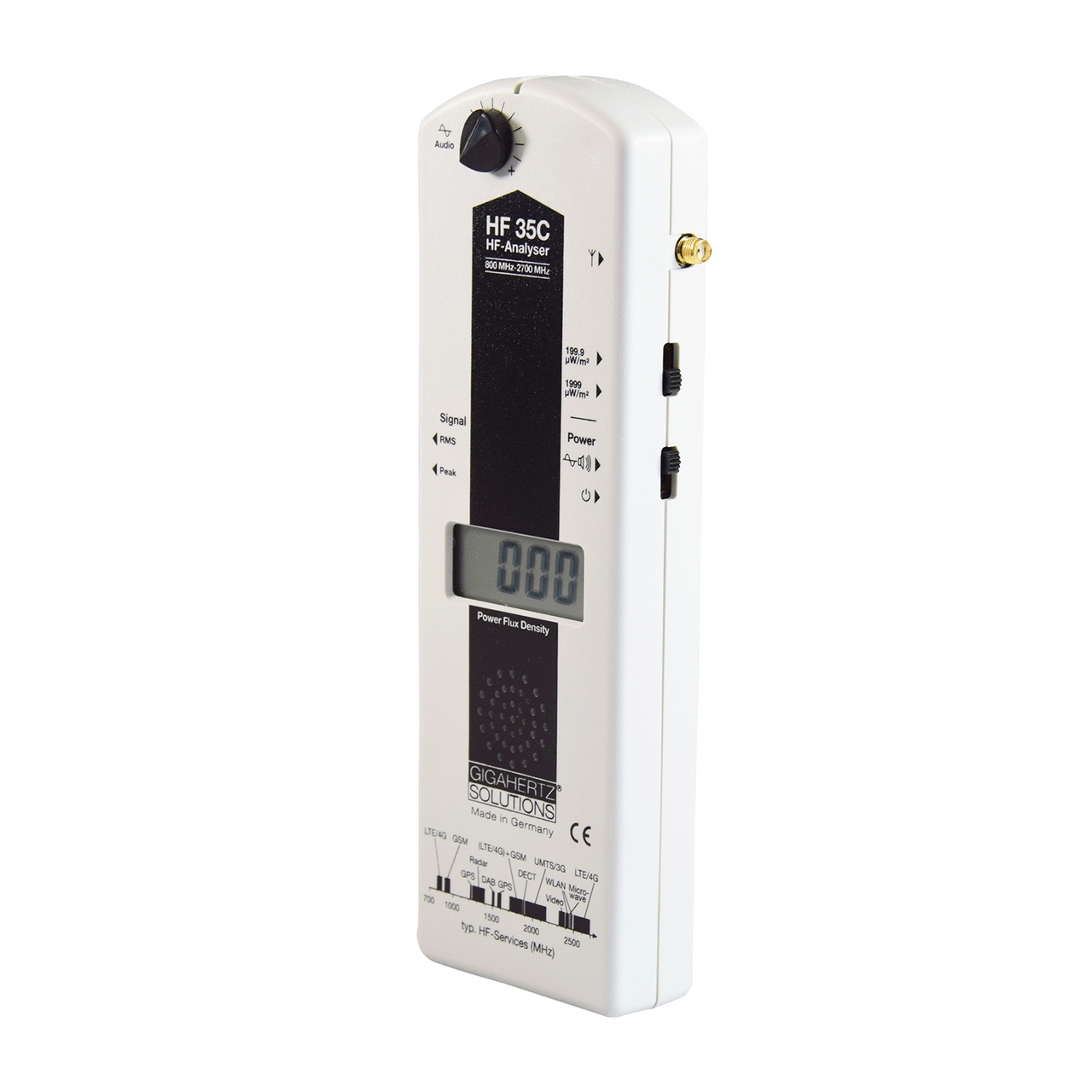

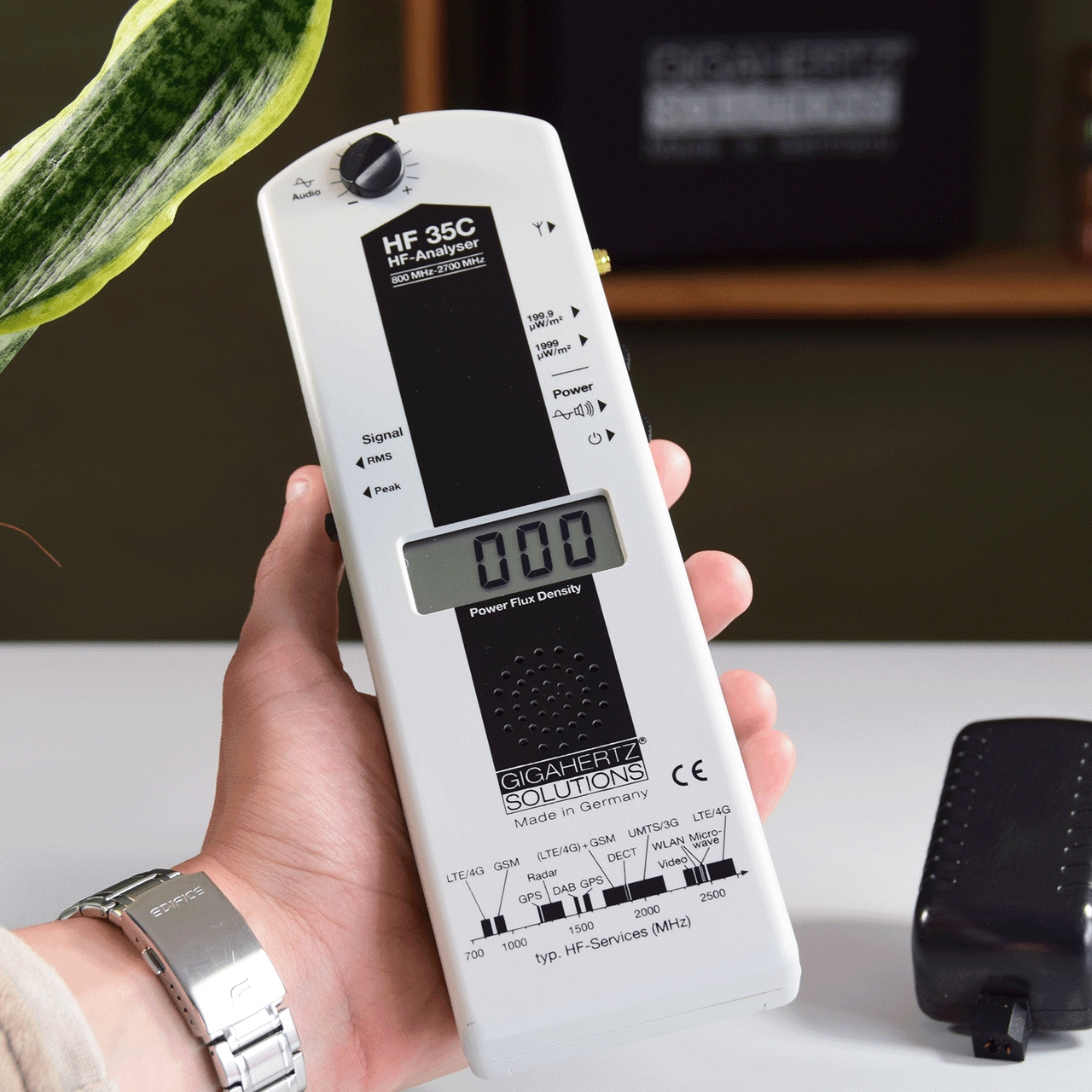

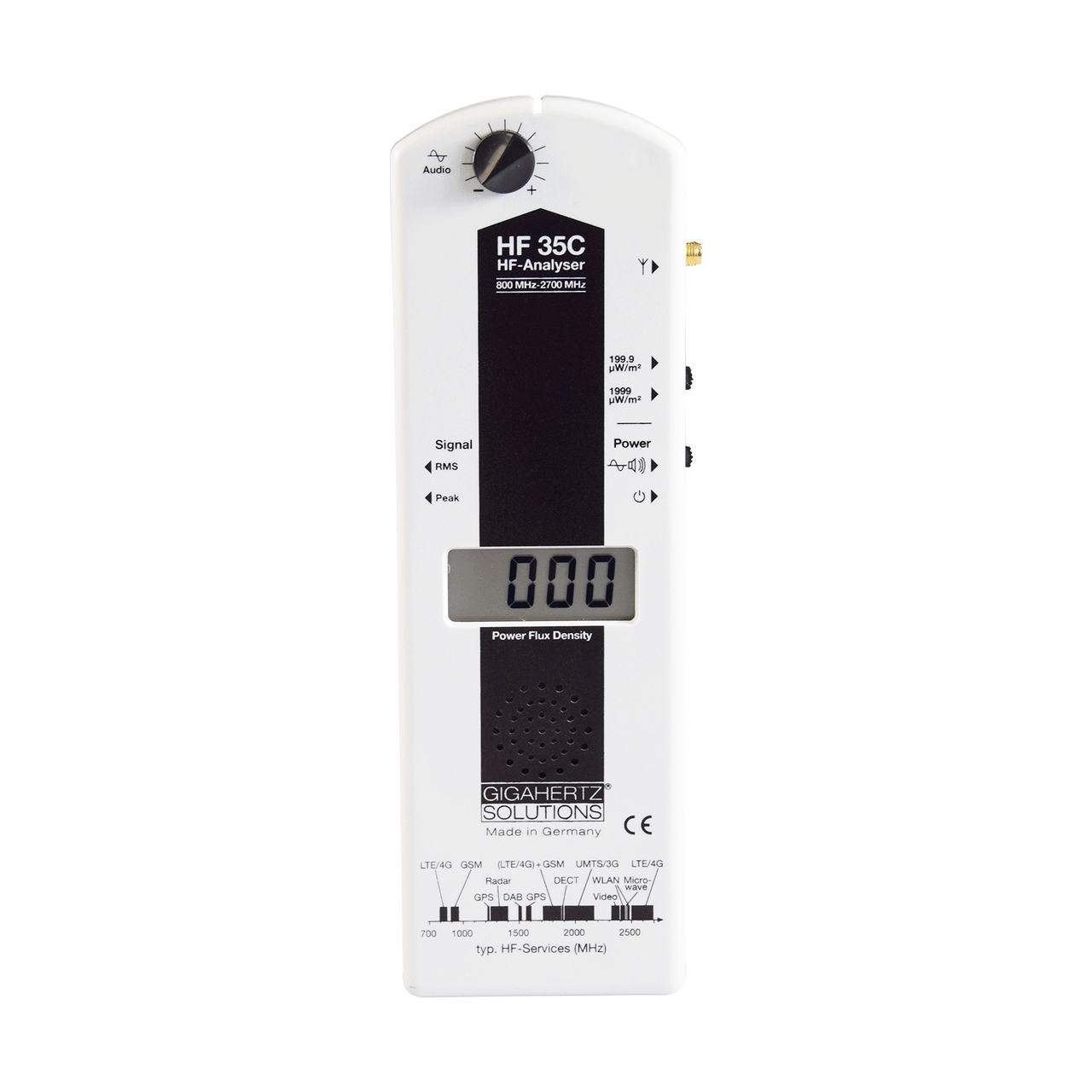

U1: Gigahertz Solutions HF35C RF Meter - OPEN BOX

Was: $389.35
Now: $329.00
No reviews yet Write a Review
SKU:
SLT-1034-U1
  • Free Shipping

  • Safe Purchase Policy

  • Safe Payments

  • Premium Selection

Our Best Selling Intermediate Level RF Analyzer - Gigahertz Solutions HF35C RF Meter - OPEN BOX - FINAL SALE

*Limited 30 Day Warranty, No Exchanges, Repair Only - Shipping Not Included*

Our Best Selling Intermediate Level RF Analyzer

Designed to Meet Bau-Biologie RF Measurement Performance Requirements.

"Know for sure" what EMF levels you are being exposed to - buy a Gigahertz Solutions HF35C RF Meter.

Professional Level Upgrades

  • Audio Identification: The meter's audio tone replicates the signal patterns and intensity of measured RF emissions and aids in source identification
  • Peak Settings and Average Settings: While measurements taken on the Average Value setting provide a basic sense of RF levels at a test site, the Peak Value setting reveals the highest levels of RF being emitted. The Peak Value is regarded as the measurement critical to assessing potential biological effects

Features:

Are you ready for a meter with more complex RF detection capabilities without giving up the 'easy use' and 'simplified source identification' features of the HF32D?

  • 10 Times the measurement sensitivity of a Entry Level Meter (HF32D)
  • A Coarse measurement range and Fine measurement range provide added value when needing to assess RF emissions
  • Coarse range covers stronger readings of 1 - 1999 µW/m²
  • Fine measurement range of 0.1 - 199.9 µW/m² offers higher sensitivity and allows for accurate detection of lower level signals
  • Increased sensitivity translates into detection of sources otherwise missed by our competitor’s RF detection equipment

Additional Features:

  • Antenna: Directional Logarithmic Periodic “LogPer” 800  MHz – 3.0 GHz  45º
  • LCD Display (3.5 digits): Easy to read 3.5 digit display
  • Accuracy / Linearity Deviation: +/– 6 dB
  • Audible Tone: The meter’s audio tone replicates the patterns and intensity of measured RF emissions
  • Signal Detection Type: Peak,Average, Full signal – Analogue plus Digital (pulsed)
  • Power Supply: 9 Volt alkaline battery included
  • Battery Low Indicator: Meter will auto–power off 3 minutes following battery low signal display
  • Auto Power Off: Saves on battery use – will auto–power off after 40 min of continuous EMF testing
  • Operating Time: Alkaline battery provides up to 6–7 hrs continuous EMF testing
  • Measuring Ranges: 0.1 –199.9 µW/m² // 1 – 1999 µW/m²
  • Maximum display resolution: 199,900 µW/m² which requires the external DG20 Attenuator

Also Offers The Features of The HF32D:

  • Easy to operate, power the unit on, selecting measurement settings and recording the LCD displayed readings as you walk the meter through your living space
  • Accessorized with a sturdy Logarithmic–Periodic Antenna, designed for directional detection of RF waves. Readings increase when the meter gets closer to or points in the direction of offending sources
  • Detects both analogue and pulsed digital signals (1 – 1999 µW/m²)
  • Detects RF radiation generated by cellular phones and cordless phones (Digital or DECT); microwave ovens; wireless communication devices such as internet routers, WLAN, Wi-Fi,  baby monitors, Bluetooth, video games, smart meters and cell phone towers in the operational range of 800 MHz to 2.7 GHz (GSM, UMTS, 2G, 3G, 4G)

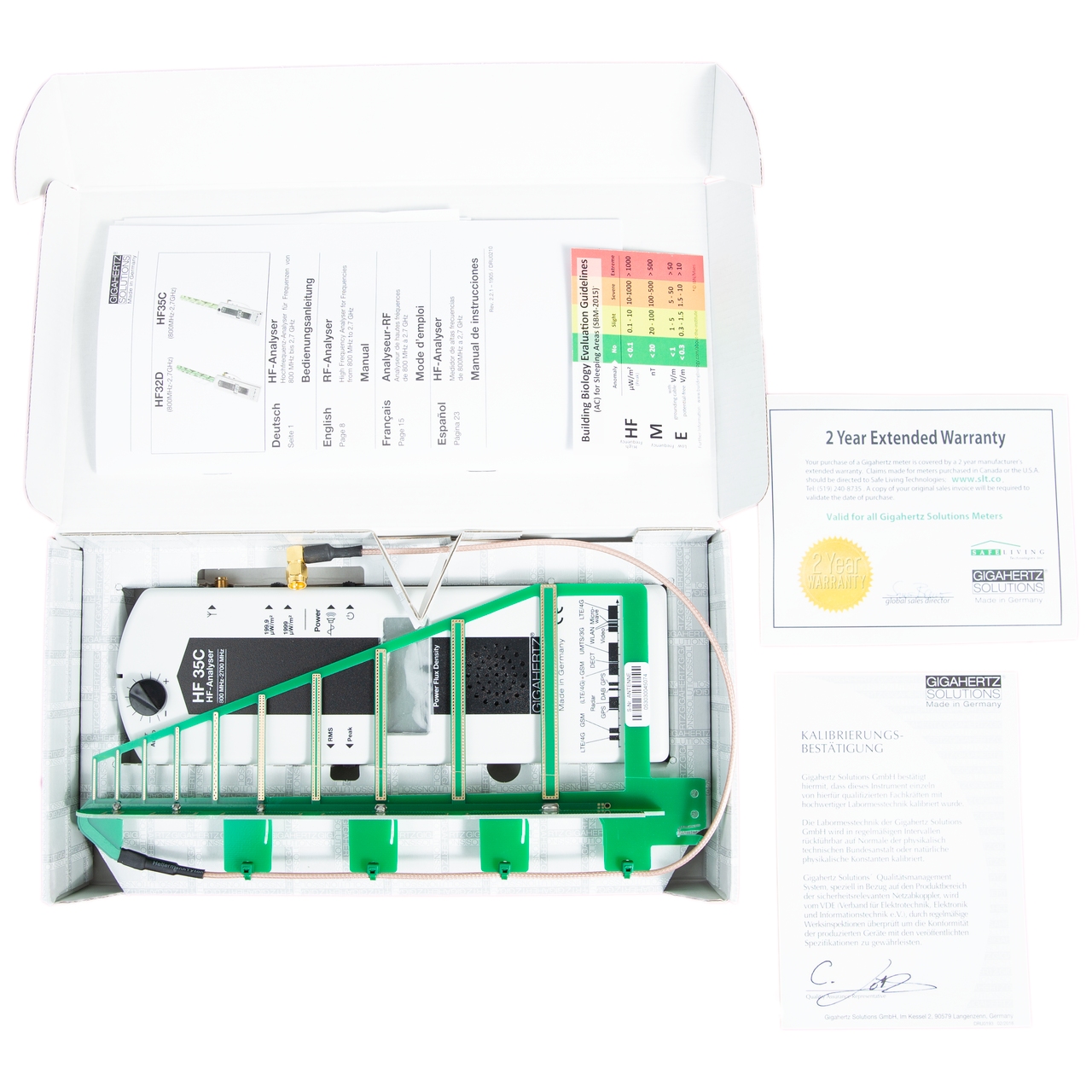

Includes:

  • Gigahertz Solutions HF35C Radio Frequency Meter

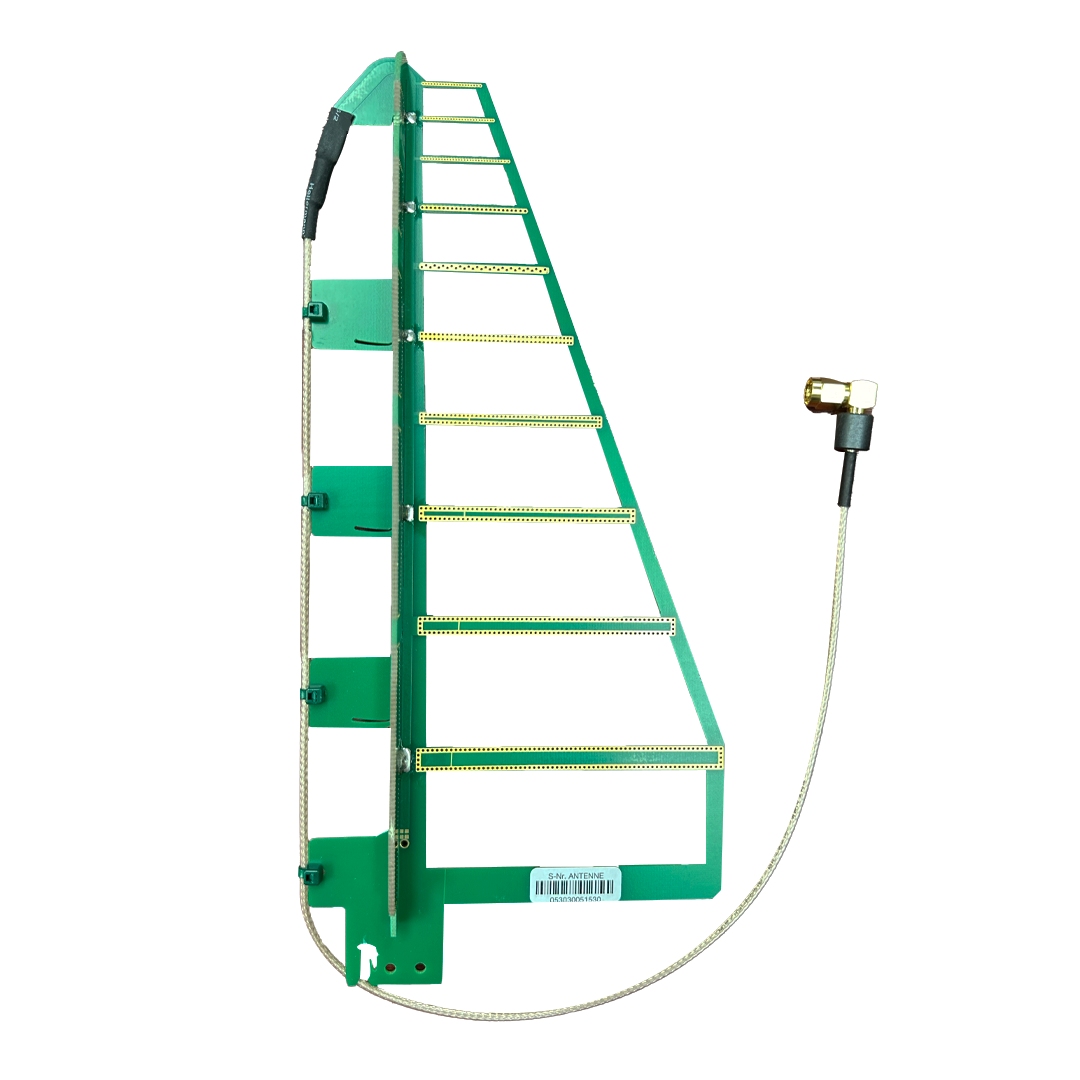

  • Logarithmic Periodic Antenna 800 MHz – 2.7 GHz vertically polarized
  • Users' Guide
  • 2 Year Warranty Certificate
  • 9V Alkaline Battery
Frequency Range:
800 MHz to 2.7 GHz
Measurement Range - Fine:
0.1 – 199.9 µW/m2 – Resolution 60 dB
Measurement Range - Course:
1 – 1999 µW/m2 – Resolution – 50 dB
Antenna:
True Logarithmic Periodic Antenna 800 MHz – 2.5 GHz vertically polarized
Signal Evaluation:
True peak and average
Accuracy:
+ / – 6 dB
Linearity Deviation:
+ / – 6 dB
Rollover:
+ / – 9 digits
Dimensions:
71 x 225 x 31 mm (W x L x H) approx 2–3/4 x 9 x 1.25 inches
Weight:
Approx. 250 grams
Material of Case:
Plastic
Operating Time:
Up to 6 – 7 hours (varies according to the mode of operation)
