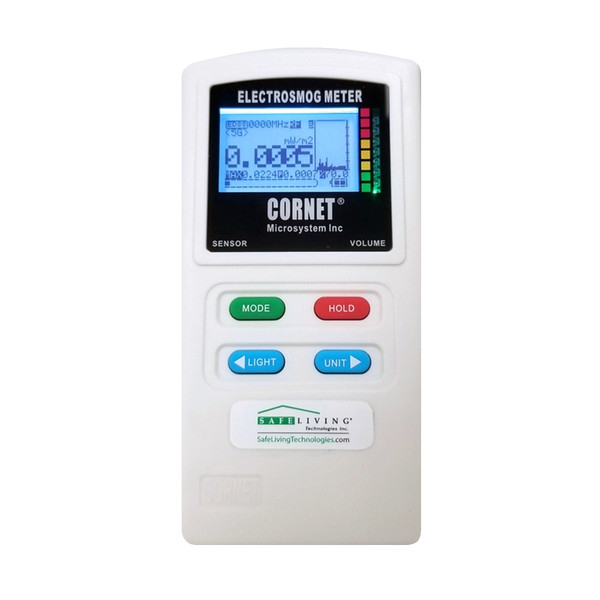

Cornet ED88TPLUS 5G2 RF-EMF Meter - Includes Hard Shell Case (March 2023 Release!)

Was: $199.00
Now: $169.00
2 reviews Write a Review
  • Free Shipping

  • Safe Purchase Policy

  • Safe Payments

  • Premium Selection

NEW Cornet ED88TPLUS 5G2 RF-EMF Meter - Includes Hard Shell Zipper Case - (March 2023 Release!)

What is an Electrosmog Meter?

This meter will give a home or business owner a basic understanding of RF and EMF exposure in their environment and help to identify the primary sources of electro-pollution in an environment. Note: If you are comparing your measurements to the Institute for Building Biology Guidelines and wish to achieve levels in the no concern range, a more sensitive meter is required. Please see our RF Meter or EMF Meter page or consult with one of our technical experts

New Features:

The ED88TPlus5G2 is the only meter on the market with the real time waveform display/logging and Statistics data window.

The Cornet ED88TPLUS 5G2 Meter has the same functions and specification as the original ED88TPlus 5G, but with the some improvements:

The Data Logging interval time has been increased up to 0.001sec.(1msec.) from 0.5sec. The user can now log the data at faster speed to capture the high speed digital RF signal waveform (such as 5G, WiFi, DECT,
....) . It is an excellent tool to view the actual signal waveform of the digital RF signal to identify the signal source. The user can now set the Logging time of (1msec, 0.5sec, 1sec, 10sec, 30sec, 1min, 2min,and 3min) in the Logger setup menu for data Logging. The meter can send it from SRAM Buffer or Flashmem to the PC computer or view it on the LCD display window.

The Statistic mode display window has been improved, the new real time signal waveform display is added to the Statistic data window. the user can now see the actual signal waveform of the RF signal displayed on each screen update. The sampling rate is 42usec/sample and is displayed at 500usec/step for the 0.5sec LCD display update time. The user can use both signal level, frequency, duty cycle and the real time waveform to identify the detected signal. This is very useful for digital RF
signals identification such as 5G, Wifi, DECT, Bluetooth,..etc., especially when several different signals are detected within the 0.5sec. LCD display update time, the user will get an inside knowledge of the digital RF signal they are measuring, get the Statistic information of the distribution of the signal levels of each signal and be able to find the best solution for the problem in terms of EMF safety.

Additional Features:

  • The ED88TPLUS 5G Meter has an RF data-logging mode. The logged RF data can be stored in the meter, viewed on the LCD display, and/or transferred to a PC (requires a Micro-USB cable).
  • Data logging can only be done in the RF mode
  • The ED88TPLUS 5G Meter can display the duty cycle of digital RF pulses/bursts
  • RF Sampling rate of 25,000 samples/sec (i.e. 40 μs)
  • Wide radio frequency detection range: 100 MHz to 8 GHz
  • Low frequency magnetic field range 1: 50 Hz to 10 kHz (0.1 uT to 60 uT)/(1 mG to 600 mG)
  • Low frequency magnetic field range 2: 50 Hz to 1 kHz (0.01 uT to 10 uT)/(0.1 mG to 10 mG)
  • Low frequency electric field range: 50 Hz to 50 kHz (10 V/m to 100 V/m)
  • Sound signature analysis, with volume control
  • Up to 50 hours of RF data logging
  • USB interface to PC
  • Peak RF power density measurement: 0.5 uW/m2 to 1.8 W/m2
  • Max, Average and Hold function (for RF measurements)
  • Histogram for RF, LF, and E-field modes
  • Ultra-fast colored LED 8x segment level display, for easy signal level indication
  • Battery operated (9V DC Alkaline); > 20hours, or external power through USB port (5V)
  • Small, compact handheld design: 69mm X 130mm
  • 1 year warranty


  • RF field strength/power level measurement
  • RF Data Logging
  • Measuring emissions from cellular phone base stations
  • Telecommunications (e.g. CW,TDMA,GSM,DECT)
  • Wireless LAN (Wi-Fi) detection, installations
  • Spy camera, wireless bug finder
  • Cellular/cordless phone radiation safety level
  • Microwave oven leakage detection
  • AC power line, transformer radiation
  • Monitoring personal living environment; EMF safety


  • ED88TPLUS 5G2 Electrosmog Meter: Qty=1
  • User's Guide
  • 9 Volt Battery
  • Hard Shell Zipper Travel Case (HS1)

Sensor Type:
Electric field sensor and magnetic field sensor
RF Frequency Range & Sensitivity:
100MHz to 8GHz (0.5uw/m² to 1.8w/m²), (14mv/m to 26.2v/m), (-60dBm to +5dBm))
LF1 Frequency Range & Sensitivity:
50Hz to 10kHz (0.1uT to 60uT)/(1mG to600mG)
LF2 Frequency Range & Sensitivity:
50Hz to 1kHz (0.01uT to 1uT)/(0.1mG to 10mG)
EField/ELF Frequency Range & Sensitivity:
50Hz to 50kHz (10v/m to 1000v/m)
Frequency Counter Frequency Range & Sensitivity:
For RF mode only, 100MHz-4.2GHz, (-35dBm minimum signal input required)
RF Peak Power Measurement:
0.5uw/m² to 1.8w/m²
Display Type:
Digital LCD graphic display
Unit of Measurements:
dBm, mw/m², v/m, uT, mG, MHz
LCD Back Light:
15 seconds auto-off and manual on/off control
Display of Data:
LCD 4 and 5 digit, 8 LED color segment, Moving Histogram (level/time) of previous 30 recorded data, Analog segment bar
Data Update Rate:
Sampling rate: 25000/sec. Display update rate: 2/sec.
Error Rate:
RF: +/- 3.5dB, LF: 20%, E-field: 25%
Hold, Max, Average, Sound Signature, Alarm, Frequency, Duty Cycle
Sound & Alarm:
Sound on/off/volume control, programmable alarm triggering level
Safety Standard Indication:
3 safety range indication by 3 Red LED, adjustable LED level
Data Logging:
1000 data storage memory cell for RF, up to 50 hours of data can be stored in the build-in memory. Magnetic field level, electric field level can also be logged and transferred to PC computer via USB
Data Logging View:
Data stored in data logging memory can be displayed and reviewed on LCD graphic display window
Statistical Data:
Statistical data of 1000 samples are displayed on window display
Battery Used:
9V alkaline battery or external power supply through USB port (5V) (the USB port does not support battery charging)
Battery Life:
>20 hours
