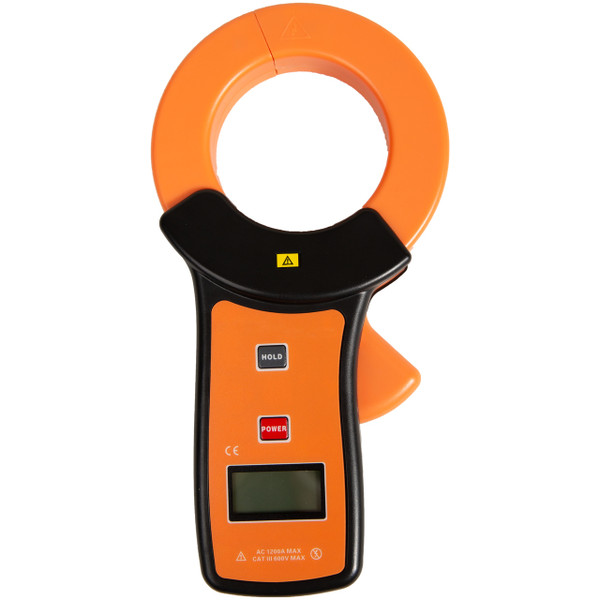

AC Current Clamp - Large
Professional AC Current Clamp Leaker
An AC Current Clamp Leaker Meter is designed for measurement of AC leakage current from live wires.
This is ideal for measuring "current" located on your electrical grounding system (most commonly your water pipe) which can result in elevated magnetic fields throughout the home.
Features:
- Easy to Operate, simply power on the unit, push the red button on the side of the unit to open the clamp and release to close
- LCD digital display will indicate the total current leakage in milliAmps
- Excellent Sensitivity - able to accurately identify current between 0.01mA to 1200A
- Size of clamp opening 68mm (2.67inches)
- Powered by a 9V alkaline battery (included)
- Includes a hold button for holding measured values on the screen
Includes:
- AC Current Clamp Meter
- 9V Alkaline Battery
- Soft Carrying Case
- Size of Jaw:
- 68mm (2.67 inches)
- Range:
- 0.00mA - 1200A
- Resolution:
- 0.01mA
- Accuracy:
- 0.00mA - 59.9A +1.5% +/- 5 digits
- Display:
- 4 Digit LCD Display
- Range Shift:
- Automatically
- Voltage Range:
- AC 600V
- LCD Dimension:
- 3.5cm x 2.15cm
- Auto Power Off:
- 5 Minutes After Power On
- Dimensions:
- 22.4cm x 11.5cm x 4.3 cm (W x L x H)
- Weight of Meter:
- 515 grams
- Case Material:
- Plastic
