Gigahertz Solutions - NFA30M

$1,420.00
No reviews yet Write a Review
SKU:
SLT-1261
  • Free Shipping

  • Safe Purchase Policy

  • Safe Payments

  • Premium Selection

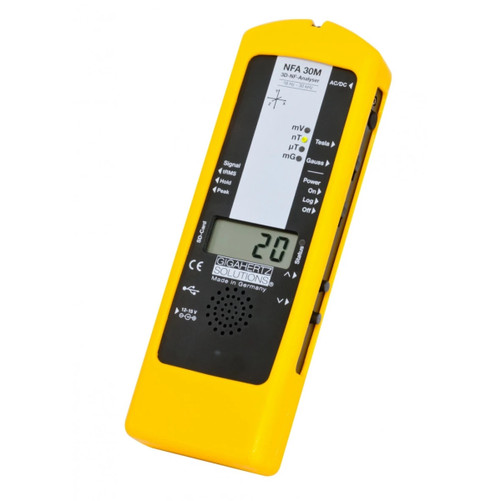

Gigahertz Solutions NFA30M Professional 3D Magnetic Field Meter: This GaussMeter with Datalogging Capabilities measures 3D AC Magnetic Fields - Ships with "NFASoft" Data Analysis Software - Will also log Radio Frequency "RF" Output from the HF59B and the HFW59D

Professional Level Magnetic Field Meter and Data Logger (16 Hz - 30,000 Hz)

  • 3D measurement of the magnetic field
  • Ability for extensive long-term data recordings
  • Supplied with revolutionary PC software (NFASoft) for facilitated interpretation and documentation of the acquired data
  • Channel for recording Radio Frequency signals from the HFE59B RF Analyzer
  • USB Connection to PC
  • Standard 4 GB SD memory card supplied (upgradeable)
  • Real time voice recordings, or audio input, embedded into the data screen for playback during data evaluation
  • A 'no tamper' lock feature allows for the device to be left securely on site while data logging is operational
  • Li-Ion rechargeable batteries for up to 48 hours of continuous recordings
  • External power supply / charger included
  • All Gigahertz Solutions EMF Meters are backed by a 2 year manufacturer's warranty

"Know for sure" What EMF Levels you are being exposed to...
                                                             Own a Gigahertz Solutions NFA30M EMF Meter

Gigahertz Solutions NFA30M Magnetic Field Meter is designed to meet Building Biology EMF measurement performance requirements

Gigahertz Solutions NFA30M 3D Magnetic Field Meter / Data Logger Includes:

  • NFA 30M EMF Meter Users Guide
  • 2 Year Warranty Certificate
  • Ships with NFAsoft - Data analysis software - Loaded on SD memory card
  • Standard Factory Calibration Certificate
  • Plastic Carrying Case
  • Rechargeable Battery Pack with Charger/Power Supply
  • 4 GB High Speed SD Memory Card
  • USB Interface Cable
  • Interface Cable (2.5 mm to 2.5 mm) – For connection to HFE59B
  • Silicone Protective Cover - Yellow



Frequency Response:
Flat Frequency Response from 16 Hz to 32 kHz
Magnetic Field Sensor:
3D – X Y Z
Signal Rating:
RMS, RMS Hold, Peak
Magnetic Field Measuring Range:
1 - 19,990 nanoTesla (0.01 – 199.9 milliGauss)
Resolution Magnetic Field:
Finest Reading - 1 nT (0.01 mG)
Accuracy / Basic Tolerance:
Compensated, better than -2 dB
Dimensions:
78 x 230 x 37 mm (W x L x H) approx 3 x 9 x 1.5 inches
Weight of Meter:
600 g
Case Material:
Plastic case with protective silicone
